Coated fabric bellows and way covers
Technical data
Industrial coated fabric bellows are great for dust protection, laser machines, and guideways that don't see high chip loads. They offer maximum compression and flexibility in a wide range of materials for a wide range of environments. Our bellows can be made folded to cover multiple sides, flat to cover a single side, or round for protecting shafts and other cylindrical machine components.
Flat bellow
| Fold Height (E) | Extension Per Fold (AZ) |
| 15 | 14 |
| 17 | 18 |
| 20 | 24 |
| 24 | 32 |
| 30 | 44 |
| 35 | 54 |
| 40 | 64 |
| 45 | 74 |
Folded bellow
| Fold Height (E) | Extension Per Fold (AZ) |
| 15 | 18 |
| 17 | 22 |
| 20 | 28 |
| 24 | 36 |
| 30 | 48 |
| 35 | 58 |
| 40 | 68 |
| 45 | 78 |
Standard mounting options

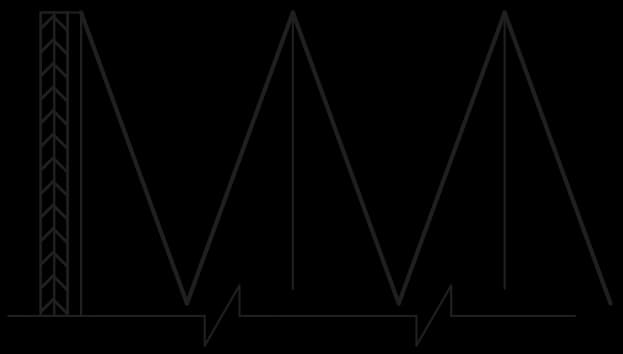

HALF FOLD
Limits extension of the first fold for outside mounting.

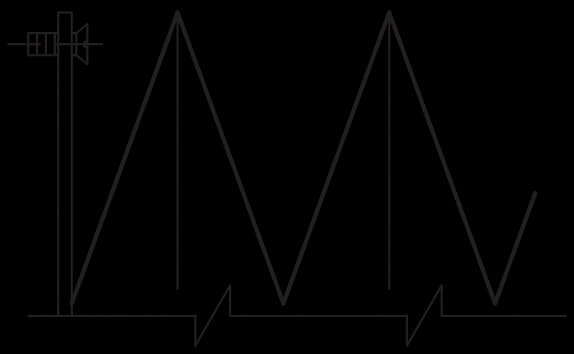

FULL FOLD
Allows for full extension of the first fold for inside mounting.

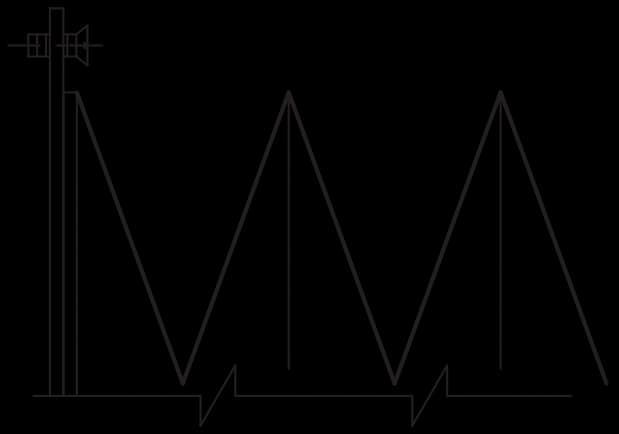

EXTERNAL FLANGE
Allows for full extension of the first bellow for outside mounting above the bellows.

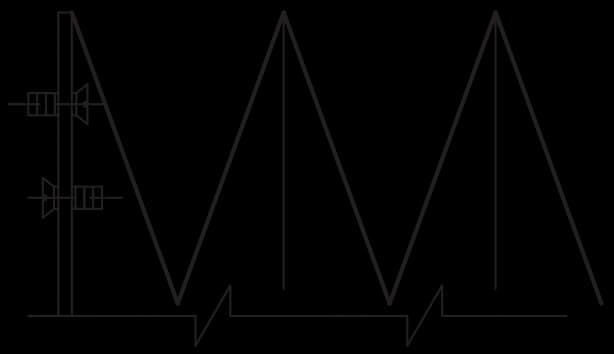

VELCRO
Supplied with adhesive backed velcro fastener for simple and quick inspection of machine components (dry applications).
Material options for coated fabric bellows
Our bellows are made exclusively from high-quality plastic fabrics and foils. We select the cover material and processing according to the design ambient conditions. Decisive factors are the mechanical and thermal strain of the bellows as well as the type of swarf and aggressiveness of the agents used. Exact details of the used materials may be gathered from the table of materials above.
| Specification Number | Coating Ext Int | Carrier | Thickness (mm) | Color | Heat Sealed | Stitched | Lamella | Round Stitched | Wear Resistance | Oil Grease Coolant Resistance | Surface Stability | Swarf Weld Splatter Forging Scale Resistance | Self Extinguishing | Flame Resistance | Extension Compressions Ratio |
| OZ-PUR | PUR/PUR | Polyester | 0.35 | Black | x | x | x | + | + | ++ | + | o | - | + | |
| GN807 | PUR/PUR | Polyester | 1.00 | Black | x | x | x | + | + | - | - | o | - | - | |
| NA-784 | TPU/TPU | Polyester | 1.00 | White | x | x | x | x | + | + | - | - | o | - | - |
| OZ-PUR | PUR/PUR | Polyester | 0.22 | Black/Grey | x | x | + | + | o | o | o | - | ++ | ||
| OZ-23 | PVC/PVC | Polyester | 0.23 | Black | x | x | + | + | o | - | - | - | ++ | ||
| OZ-35 | PVC/PVC | Polyester | 0.36 | Black | x | x | x | + | + | + | o | o | - | + | |
| ALUM-ARAMID | ALU/ALU | Nomex | 0.35 | Black | x | x | x | + | + | + | ++ | ++ | + | + | |
| PUR/TEFLON | PTFE/PUR | Polyester | 0.30 | Black | x | x | x | ++ | ++ | ++ | o | o | - | + | |
| NEOPRENE | NEP/NEP | Nylon | 0.40 | Black | x | x | x | x | ++ | ++ | ++ | ++ | o | - | o |
| HYPALON | HYP/HYP | Nylon | 0.40 | Black | x | x | x | x | + | + | + | o | o | - | o |
++ Excellent + Good o Suited Under Certain Conditions - Unsuitable
Table of materials
| Commonly Used Materials | Details |
| Polyurethane (PUR) | Temperature Resistance up to 120°C |
| Aluminized | Aluminum-coated Nomex® - temperature resistance up to 400°C (only for stitched version) |
| Nomex® | Flame-resistant material, suitable for laser applications |
| Kevlar® | High strength, abrasion resistant, puncture resistant |
| Polyvinylchloride (PVC) | Material does not continue burning if ignited (self-extinguishing) |
| Teflon® Polytetraflourethylen (PTFE) | Anti-adhesive, high-chemical and thermal resilience, dirt and water-repelling, corrosion-proof |
